Wheel Loader
AG938
- High power, low noise, and low fuel consumption.
- Spacious hexagonal cab with explosion-proof glasses.

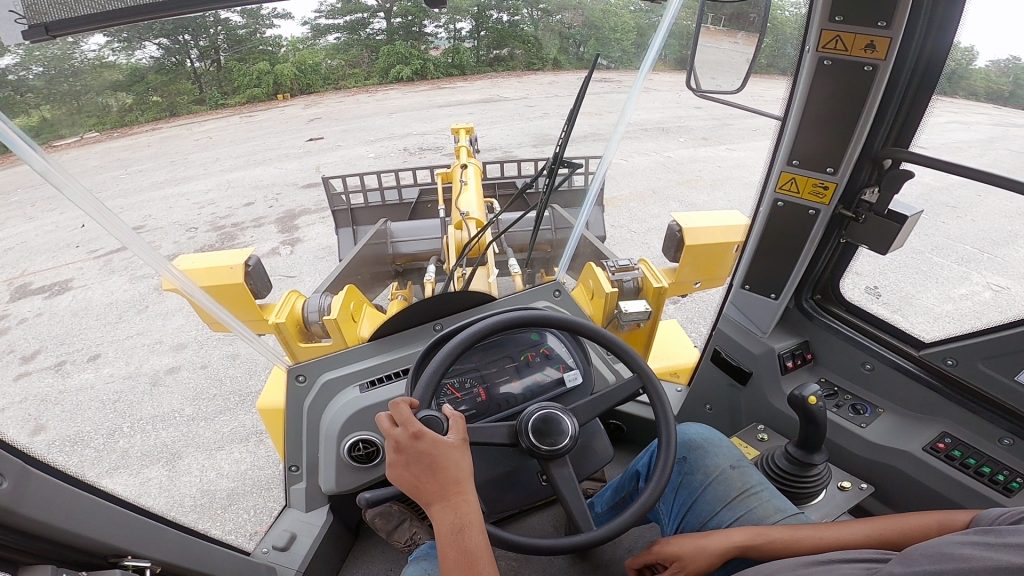

- Brand new interiors and easily operated, safe and comfortable.
- Optimized structure for stability and reliability.

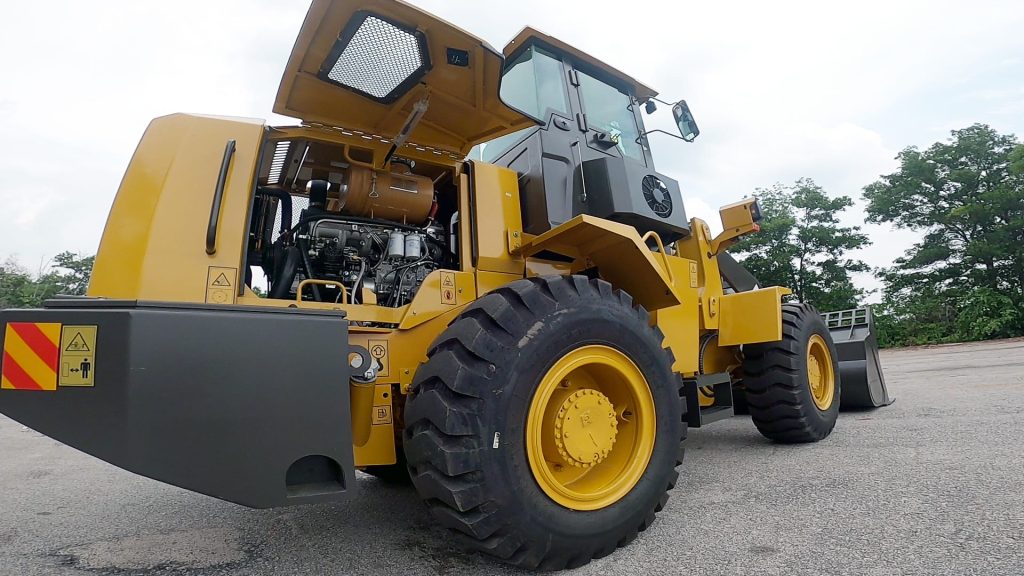

- Convenient maintenance and easy care.
Specifications
| Standard Bucket Capacity | 1.8 m³ |
| Optional Bucket Capacity | 1.4 - 3.0 m³ |
| Rated Load | 3,200 kg |
| Max Dumping Height | 3,060 mm |
| Operating Weight | 10,800 kg |
| Overall Dimension (L x W x H) | 6990 x 2245 x 3320 mm |
| Bucket Width | 2,420 mm |
| Min. Turning Radius | 5,153 mm |
| Dumping Reach at Max Lift | 1,020 mm |
| Max. Breakout Force | 100 kN |
| Max. Drawing Force | 105 kN |
| Tire Size | 16/70-20 |
| Wheel Base | 2,750 mm |
| Wheel Track | 1,800 mm |
| Rated Power | 92 kW |
| Rated Speed | 2200 r/min |
| Max. Torque | 500 N.m |
| Max Fuel Consumption | 225 g/kW.H |
Product specifications are subject to change without notice. Standard and optional equipment may vary.
Gallery
