Skid Steer Loader
S65
- Bobcat type quick hitch coupler
- Open cabin with mechanical control system

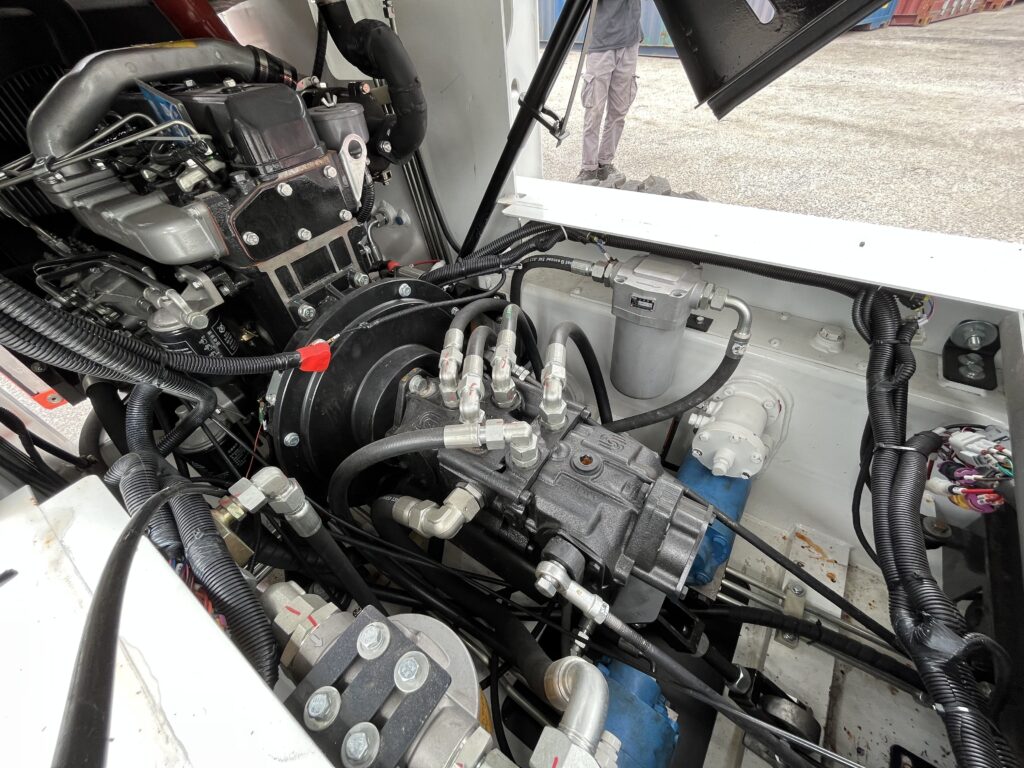

- Xinchai brand diesel engine A498BZG

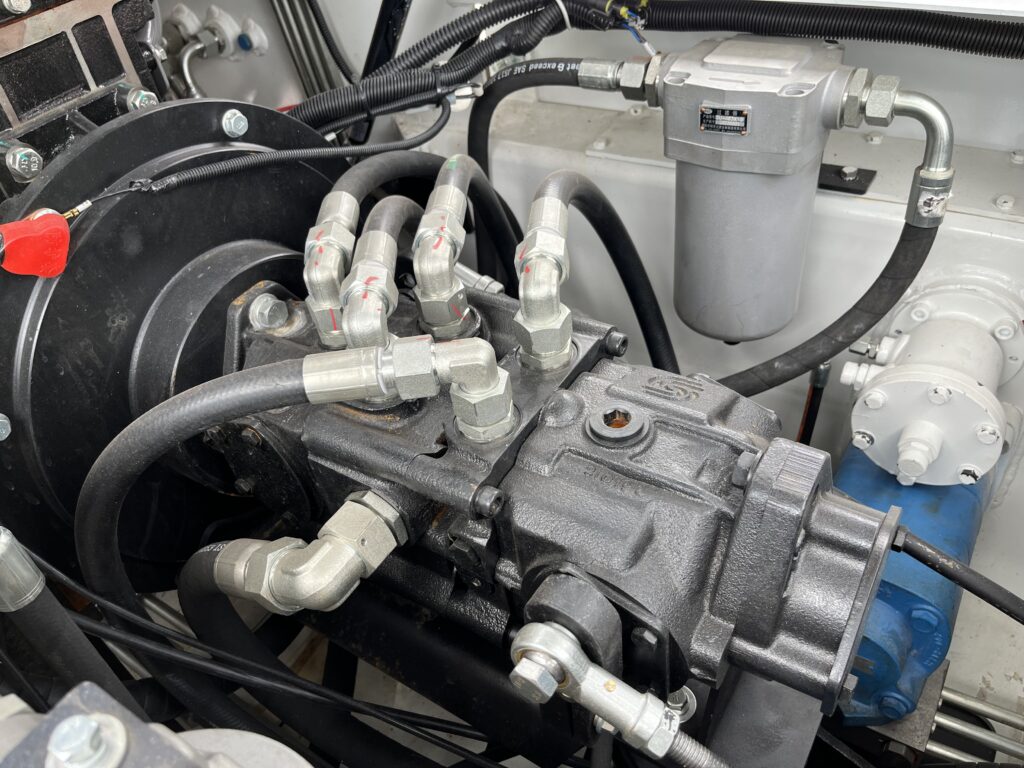

- Sauer Danfoss brand hydraulic pump
- Eaton brand hydraulic motor
Specifications
| Engine Type | XINCHAI A498BZG |
| Engine Power | 55 kW |
| Engine Fuel | Diesel |
| Rated Operating Capacity | 950 kg |
| Tipping Load | 1,900 kg |
| Weight | 3,300 kg |
| Max Travel Speed | 12 km/h |
| Gradeability | 20 % |
| Dumping Angle | 40 ° |
| Dumping Height | 2,400 mm |
| Dumping Reach | 750 mm |
| Hydraulic Pump Type | SAUER DANFOSS |
| Hydraulic Oil Capacity | 75 ℓ |
| Hydraulic Motor Type | America EATON |
| Bucket Capacity | 0.5 m³ |
| Total Height | 2,160 mm |
| Height at Maximum Extension | 4,000 mm |
| Hinge Pin Height | 3,100 mm |
| Length With Bucket | 3,490 mm |
| Length Without Bucket | 2,790 mm |
| Width With Bucket | 1,880 mm |
| Tire | 12 - 16.5 Ø |
| Track Width | 1,500 mm |
| Wheelbase | 1,085 mm |
| Ground Clearance | 205 mm |
Product specifications are subject to change without notice. Standard and optional equipment may vary.
Gallery
