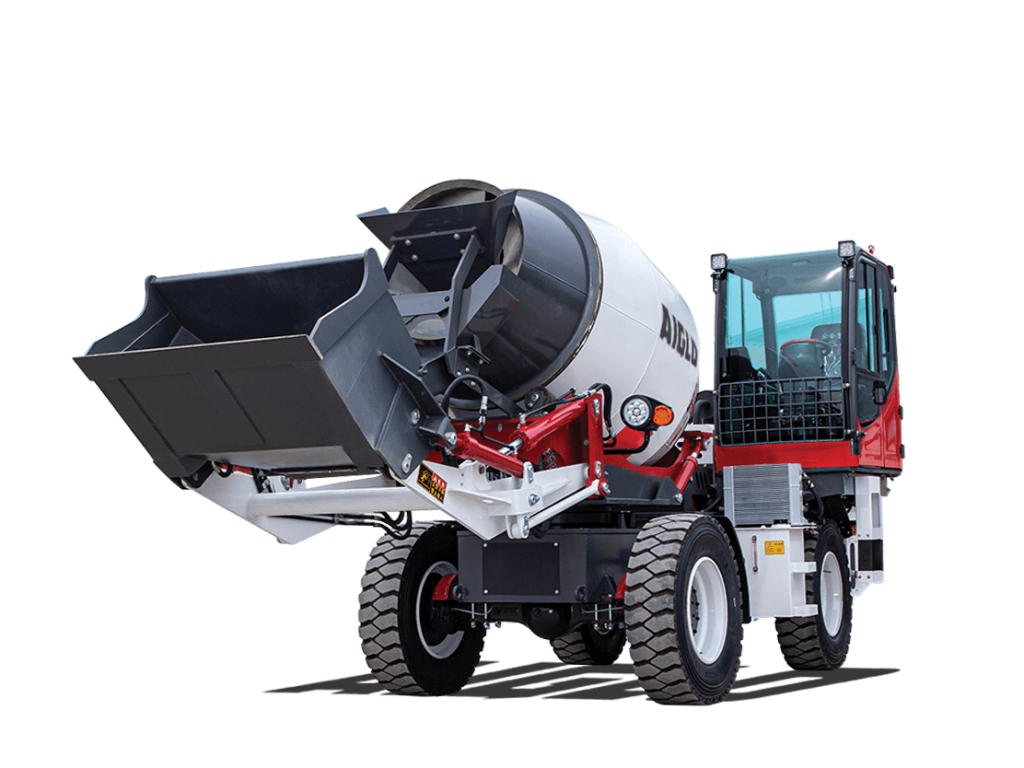

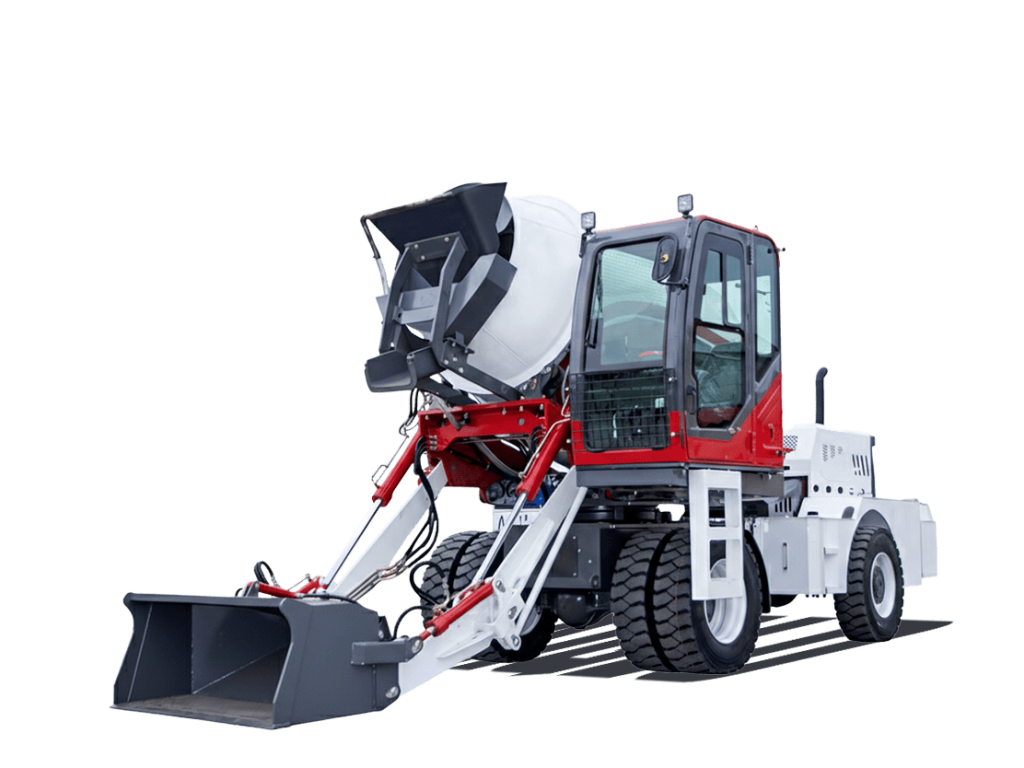

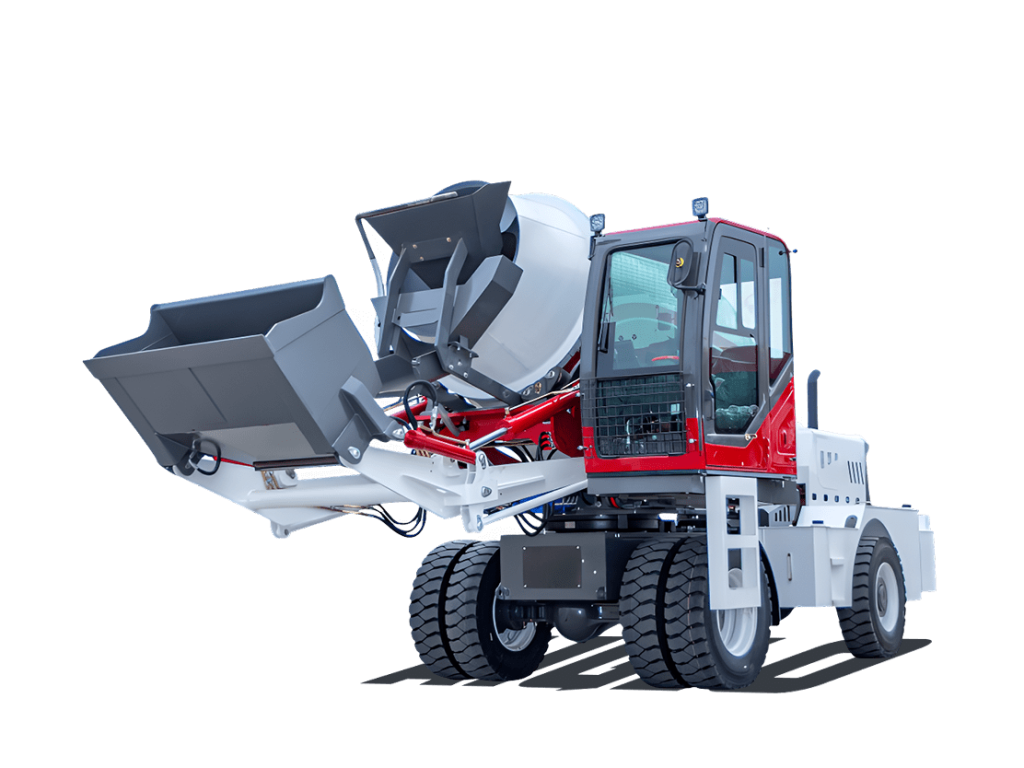

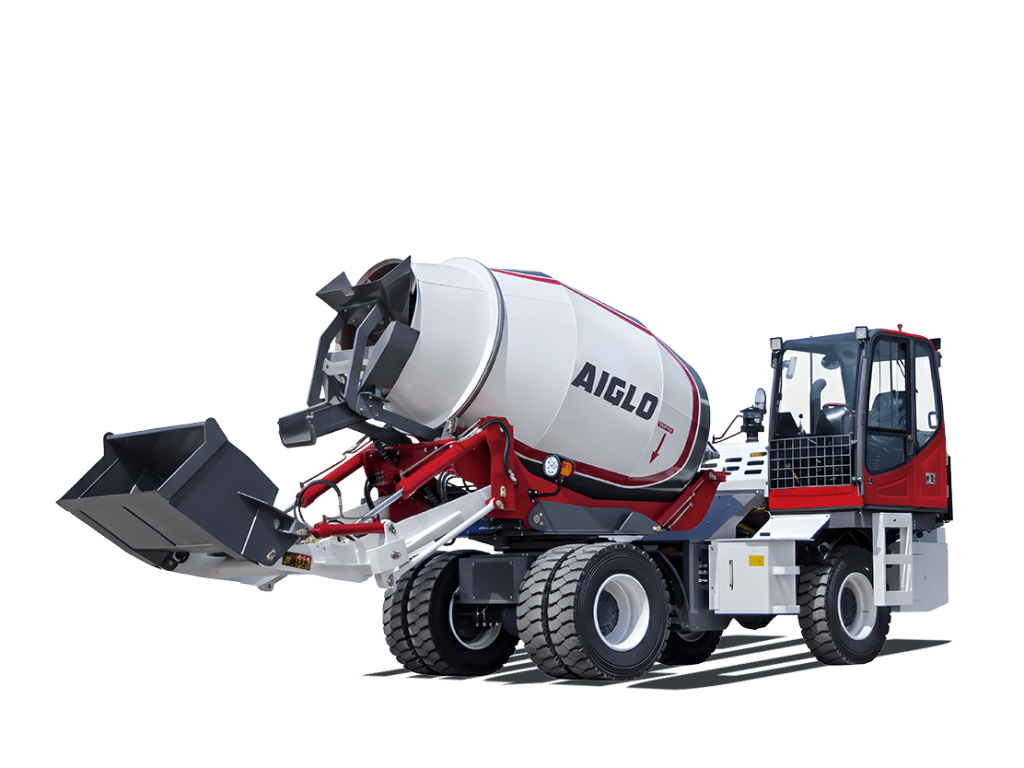

SELF PROPELLED CONCRETE MIXER
Revolutionize your concrete mixing process with our state-of-the-art Self-Propelled Concrete Mixer, a cutting-edge solution that seamlessly combines the functionalities of a concrete truck and a loader feeding machine. Designed for efficiency and convenience, this innovative equipment takes your concrete preparation to a whole new level, making it a game-changer for construction projects of all sizes.
1.8 m3
Rated Power :
78 kW
Curb Weight :
7,500 kg
2.8 m3
Rated Power :
85/90 kW
Curb Weight :
9,000 kg
4.0 m3
Rated Power :
92 kW
Curb Weight :
11,000 kg
5.0 m3
Rated Power :
92 kW
Curb Weight :
12,500 kg
Choosing the Right Fit
Machine Model Comparison
| Drum Size | 1.8 m³ | 2.8 m³ | 4.0 m³ | 5.0 m³ |
| Rated Power | 78kW | 85/90kW | 92kW | 92kW |
| Drivetrain | 4 x 4 | |||
| Max Speed | 25 km/h | |||
| Dimension (Bucket Down) (L x W x H) | 7100 x 2350 x 2940 mm | 7900 x 2800 x 3070 mm | 8420 x 2850 x 3260 mm | 8580 x 2920 x 3560 mm |
| Curb Weight | 7,500kg | 9,000kg | 11,000kg | 12,500kg |
| Production Output per Hour (m³/hour) | 6 - 8 | 8 - 13 | 12 - 20 | 15 - 25 |
| Rotating Speed | 15 laps/minute | |||
Product specifications are subject to change without notice. Standard and optional equipment may vary.
Self-Propelled Concrete Mixer Mastery
Operation & Tutorial Videos
AIGLO Self Propeller Concrete Mixer – Daily Maintenance and Checking
AIGLO Self Propeller Concrete Mixer – Functional Instructions
AIGLO Self Propeller Concrete Mixer – The Process of Mixing Concrete
AIGLO Self Propeller Concrete Mixer – Operation Instructions
